FALTER

lo-fi squarewave digital VCO

click image to view larger

  price:  $19   :::   SOLD OUT

 ::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

NO LONGER INCLUDES POTS, SWITCHES OR BATTERY CLIP

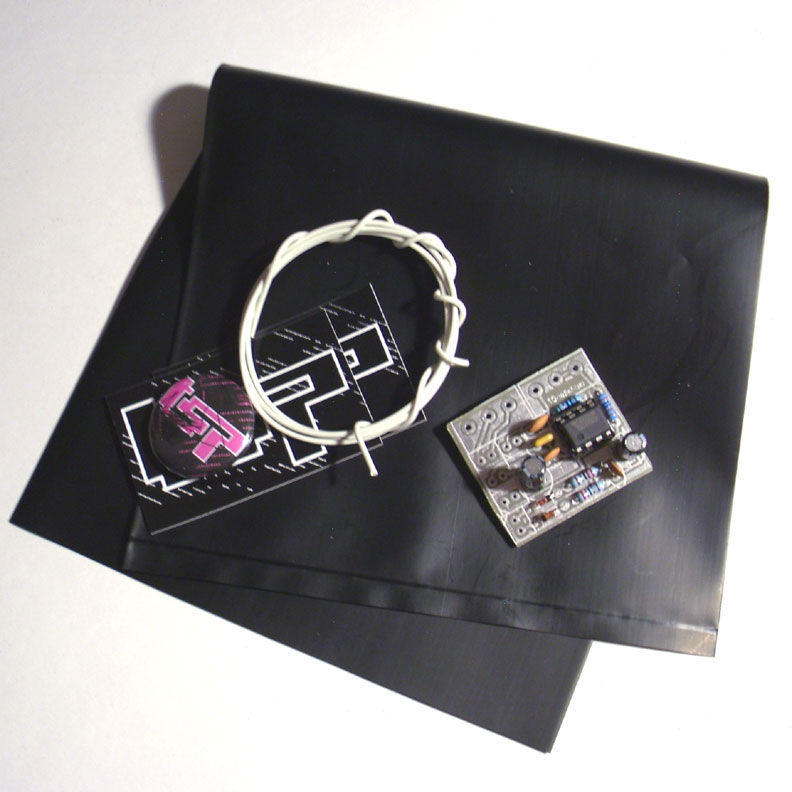

this is your basic lo-fi squarewave digital VCO, yes just a 555, with a few additions. it has a wide switchable frequency range, voltage controlled input with a depth control and a switch for DC offset.

::: INSTRUCTIONS :::
:::  WIRING TUTORIALS :::
:::  ANSWERS :::

 ::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

RATE, RANGE, CV input, CV depth and DC offset

 ::: PARTS REQUIRED :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

1M pot, 100K pot (optional), 2 spst switches (one optional) and a power source - 9v recommended.

 ::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

 ::: SAMPLE SOON :::

 ::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

hand assembled

fully tested before shipping
wide power supply range from 4.5 volts DC to 15 volts DC
professionally manufactured PCB, but cut by hand
length and width dimensions—1-3/8” x 1-1/4” or 35mm x 30mm
height dimensions - without pots 7/16" or 15mm / with pots 15/16" or 24mm
shipped safely in a static bag

1 year parts and labor warranty * conditional - bending the actual device voids it



please feel free to contact me if you have any questions or visit the forum here
