CONSTANT

variable shape analog VCO

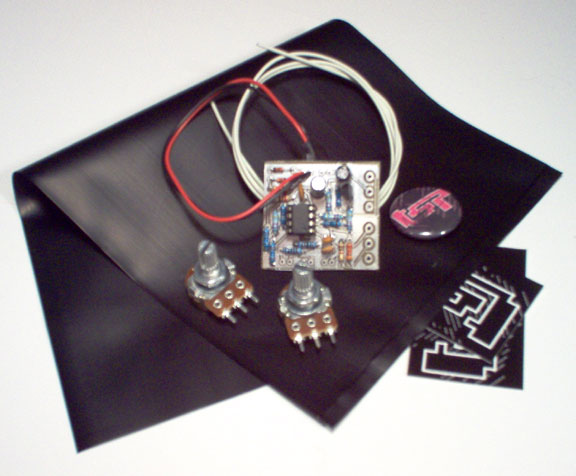

click image to view larger

price: $38 ::: SOLD OUT

::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

this is a fairly crude linear analog VCO intended for applications that do not require chromatic pitch tracking. the rate / pitch will respond to voltage control over a wide range, it has a variable wave shape from tri to square via a pot, and it has a switchable pitch range.

::: INSTRUCTIONS :::

::: WIRING TUTORIALS :::

::: ANSWERS :::

::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

RATE, SHAPE, RANGE, RATE CV 1 and RATE CV 2

::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

::: SAMPLES SOON :::

::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

hand assembled
fully tested before shipping
wide power supply range from 3 volts DC to 15 volts DC
current required - less then 3ma
professionally manufactured PCB, but cut by hand
length and width dimensions—1-1/2” x 1-3/8” or 39mm x 33mm
height dimensions - without pots 7/16" or 15mm / with pots 15/16" or 24mm
shipped safely in a static bag
1 year parts and labor warranty * conditional - bending the actual device voids it

please feel free to contact me if you have any questions or visit the forum here
