QUIVER

self modulating potentiometer replacement

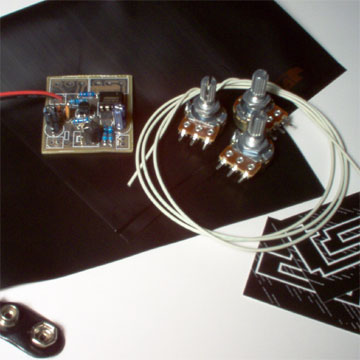

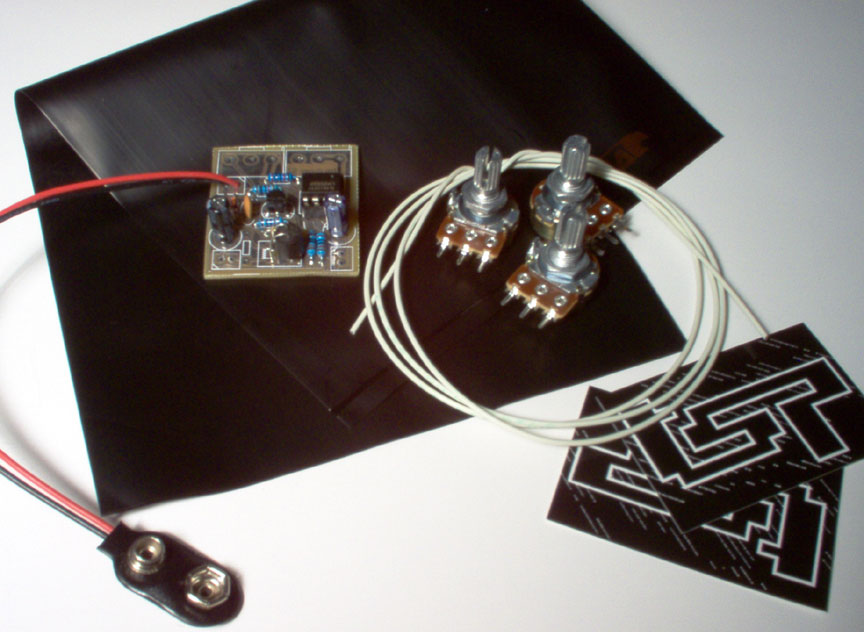

click image to view larger

price: $29 ::: SOLD OUT

::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

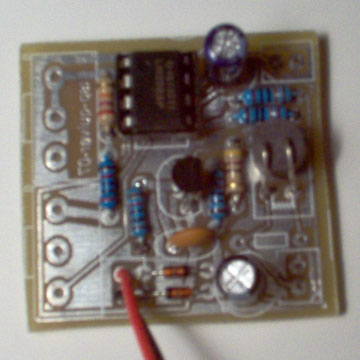

you can think of the quiver as a self modulating potentiometer replacement. it is a wide range LFO with two shapes, tri and square, that you can smoothly morph between. the LFO feeds the LED side of a vactrol and the variable resistor side of the vactrol is available to you via two holes on the board. you can attach the variable resistor pins to any place you would normally use two pins of a pot and use the quiver to modulate the resistance. i also included a section on the board for you to insert an additional limiting resistor for applications where the full range will be overkill, if you like you could also use a pot for more control. vactrols by nature are not perfectly matched so they will vary from device to device by small amounts. on average when using a 9V power source the general resistance sweep is between 0k to 300k / 400k and this is adjustable over a 700k to 800k range using the depth pot. which means you can choose to modulate 0k to 400k or sweep the depth pot and modulate the 400k to 800k range. also using different voltage power supplies will increase or decrease the resistance range respectively. so please take that into account. 9v recommended.

::: INSTRUCTIONS :::

::: WIRING TUTORIALS :::

::: ANSWERS :::

::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

RATE, DEPTH and SHAPE

::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

::: SAMPLE :::	modulating a simple 40106 squarewave oscillator's pitch similar to a single section of the parade

::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

hand assembled
fully tested before shipping
wide power supply range from 3 volts DC to 15 volts DC
current required -
professionally manufactured PCB, but cut by hand
resistance sweep averages 0k to 300k / 400k over a 0k to 700k / 800k range
length and width dimensions - 1-7/16" x 1-3/8" or 37mm x 35mm
height dimensions - without pots 7/16" or 15mm / with pots 15/16" or 24mm
shipped safely in a static bag
1 year parts and labor warranty * conditional - bending the actual device voids it

please feel free to contact me if you have any questions or visit the forum here
