POLLEN

analog noise generator

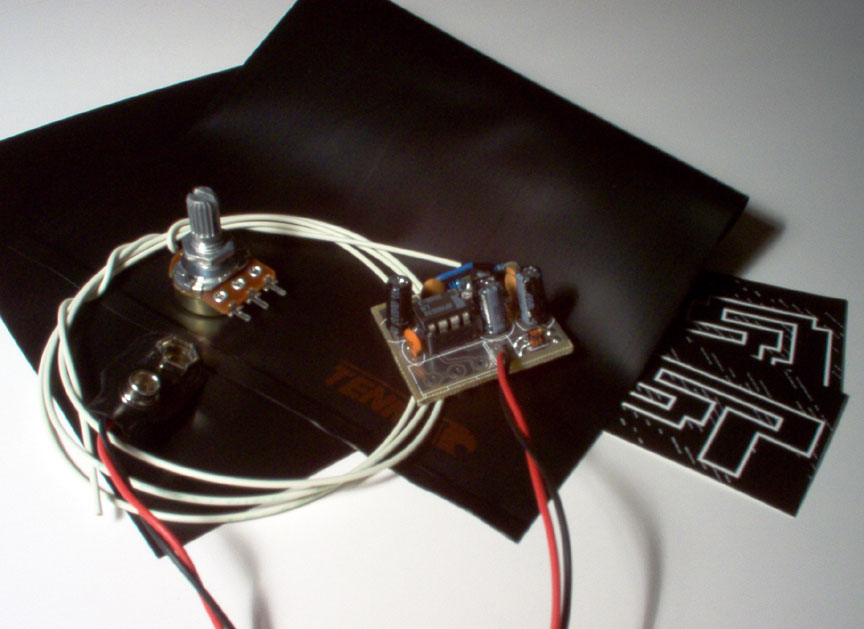

click image to view larger

::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

update: don't hold your breath for this one its giving me trouble and i won’t have to time for troubleshooting for a little while

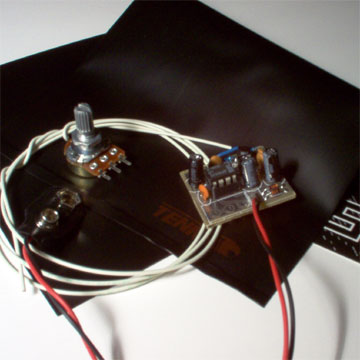

pollen is a simple compact analog noise generator with a passive variable lowpass filter strapped to its output. not much else to say really, there is a pot to control the lowpass frequency and an output. 9v recommended.

::: INSTRUCTIONS SOON :::

::: WIRING TUTORIALS :::

::: ANSWERS :::

::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

lowpass FILTER

::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

::: SAMPLE SOON :::

::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

hand assembled
fully tested before shipping
wide power supply range from 4 volts DC to 12 volts DC
current required -

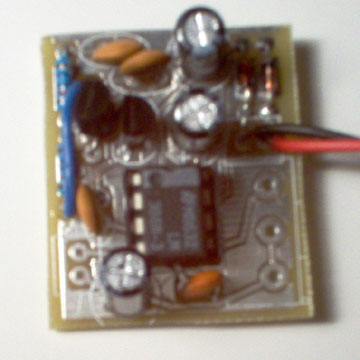

professionally manufactured PCB, but cut by hand
length and width dimensions—1-1/4” x 1-1/8” or 32mm x 28mm
height dimensions - without pots 7/16" or 15mm / with pots 15/16" or 24mm
shipped safely in a static bag
1 year parts and labor warranty * conditional - bending the actual device voids it

please feel free to contact me if you have any questions or visit the forum here
