the SLOSH BOX - ST

stereo variable resonant low pass filter box

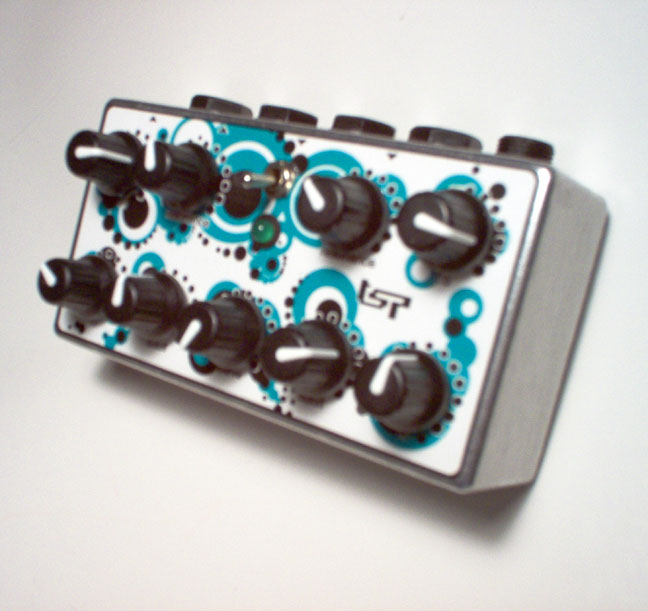

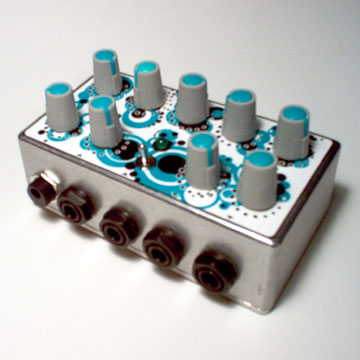

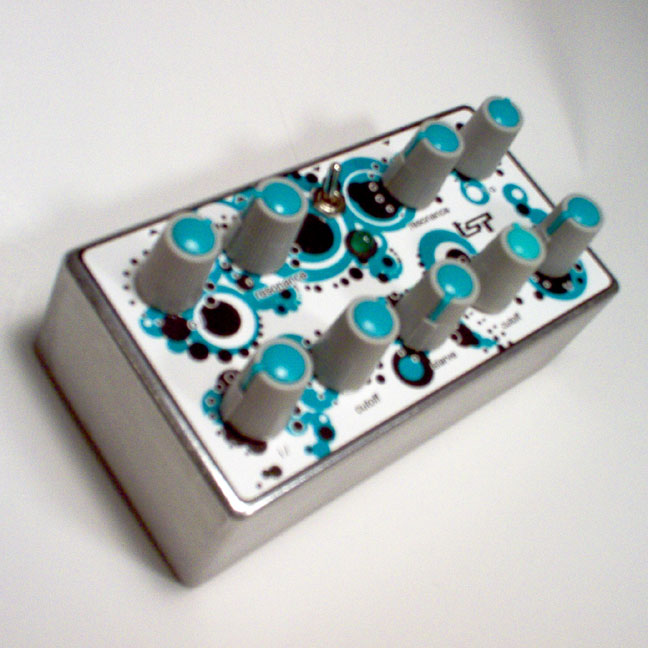

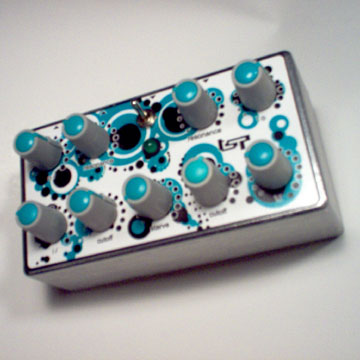

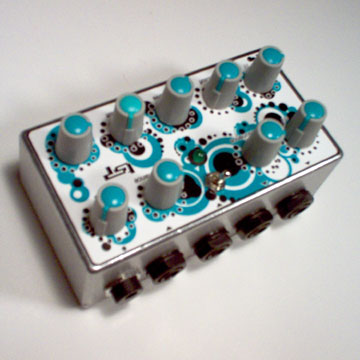

click image to view larger

only 8 made ::: SOLD OUT

::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

this box contains two separate DRENCH parasites, which are analog resonant low pass filters, that i've added some extra features too. each channel has an input volume control, cutoff, resonance ( to self-oscillation ), output volume and its own input and out jack. there is also a master starve pot for adding graininess and distortion to everything, but it only has an effect when running at 12v or under. there is a 2.1mm wall adaptor jack ( keep it under 15vDC ), a main power toggle switch ( not a bypass), and a green LED. ( no battery clip )

designed for line level applications

::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

INPUT VOLUME, CUTOFF, RESONANCE, OUTPUT VOLUME, STARVE and POWER

::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

* note: these are just DRENCH samples but they are the same thing minus the starve which is just analog distortion not glitchy madness - if i have time i'll try to make some new ones

::: SAMPLE :::	rough sweeping around the cutoff and res with a drum sample loop provided by dispyz

::: SAMPLE :::	quick / dirty casio mt-40 sample to give you an idea. the drums are pretty limited in frequency with not much bass at all so keep that in mind.

::: SAMPLE :::	self oscillation

::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

handmade - numbered internally
heavy duty aluminum enclosure
2.1mm power jack ( center negative ) 5vDC to 15vDC do not exceed 15vDC !!!
extensively tested before shipping
2 ¼” input jacks - 2 ¼” output jacks ( mono )
current required - less then 3ma
dimensions: 4.8 in. x 2.6 in. x 1.6 in.
professionally manufactured PCBs
3 year parts and labor warranty * conditional - void if bent


please feel free to contact me if you have any questions or visit the forum here
