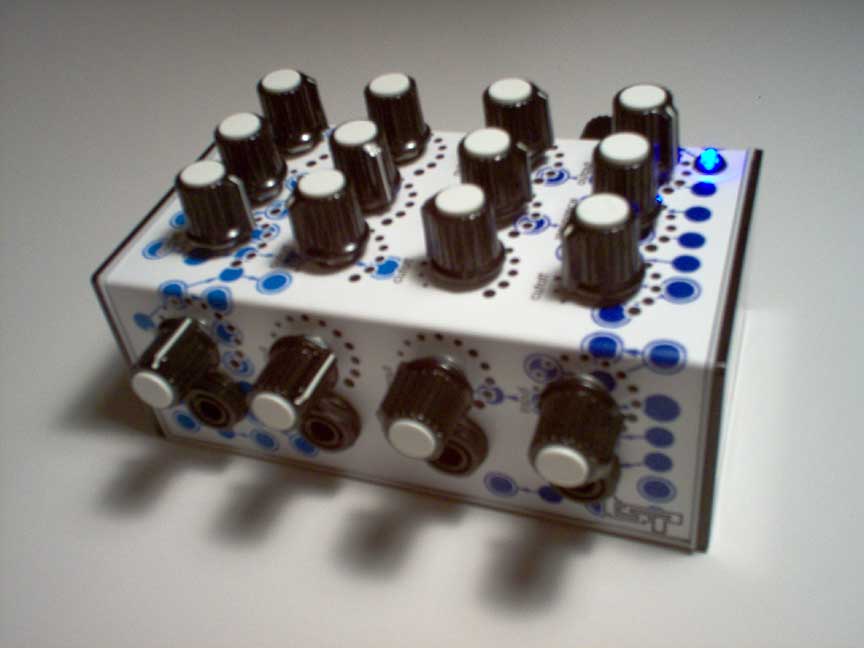

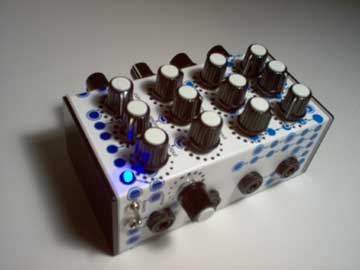

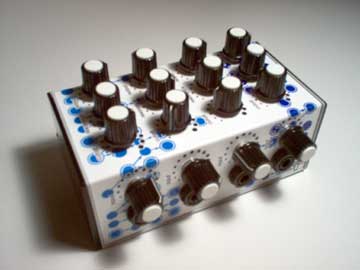

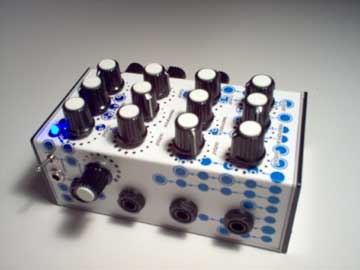

the SLOSH BOX

quad variable resonant low pass filter box

click image to view larger

::: SOLD

::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

this box contains four separate drench parasites, which are all analog resonant low pass filters that i've added some extra features too. each channel has an input volume control, cutoff, resonance, output volume and its own input and out jack. there is also a master starve pot for adding graininess and distortion to everything. i've also added a main power input jack ( 2.1mm ) so you can use a wall adaptor ( keep it under 15vdc ), a main power toggle switch, a blue LED and an internal 9v battery clip (adding a battery inside can get a little cramped though ). the case is nice and easy to work with. it snaps together and is pretty heavy duty ABS. i also normalled the two center input and output jacks to the outside channel jacks. meaning that you can insert one plug into input two and it will feed both channel two and channel one at the same time. the same goes for channel three being normalled to channel four. but as soon as you insert anything into either the input or output of channel 1 ( or 4 ) it breaks the normal and lets you use them all separately. i can explain it further if that doesn't make sense. its pretty simple to understand once you've tried it in person. the point is you can use it as a stereo device with two LPF's per channel if you want, or you can use it as 4 separate channels being feed by your drum machine for example.

::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

INPUT VOLUME, CUTOFF, RESONANCE, OUTPUT VOLUME, STARVE and POWER

::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

these are DRENCH samples but are the same thing minus the starve

::: SAMPLE :::	rough sweeping around the cutoff and res with a drum sample loop provided by dispyz

::: SAMPLE :::	quick / dirty casio mt-40 sample to give you an idea. the drums are pretty limited in frequency with not much bass at all so keep that in mind.

::: SAMPLE :::	self oscillation

::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

ABS plastic snap together case
single 9V battery operation
wide power supply range, 2.1mm power jack ( center negative ) do not exceed 15vDC !!!
extensively tested before shipping
four ¼” input jacks - four ¼” output jacks ( mono )
current required - only 3ma required. a single 9v will last about 9 solid days
professionally manufactured PCBs, but cut by hand
1 year parts and labor warranty * conditional - bending the actual device voids it


please feel free to contact me if you have any questions
