proto mingrod

true analog ring / balanced modulator



                                                                                                                               :::  SOLD

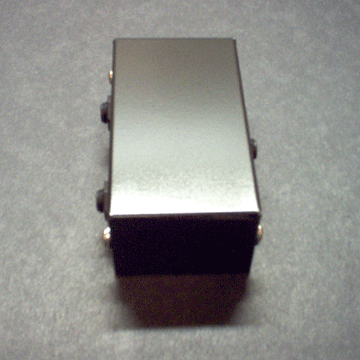

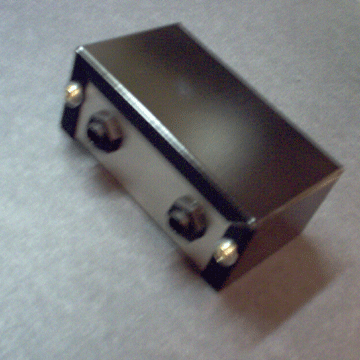

the early prototype for version of the mingrod.



this is a real analog passive ring modulator made with hand matched components for minimal signal leak, though it does still leak a bit. one side has the source and carrier inputs and the other has the output. though the input and output are interchangeable. being a passive design you may need to increase the level of quieter signals to match the other one you use by adding a pre amp, distortion pedal, channel of a mixer etc... you may also want to boost the output depending on your intentions. using line level instruments are ideal. the transformers on the input and output allow it to take high volume levels and distorts nicely i think.

samples :::  see parallel 001 for ring mod sample  they are identical

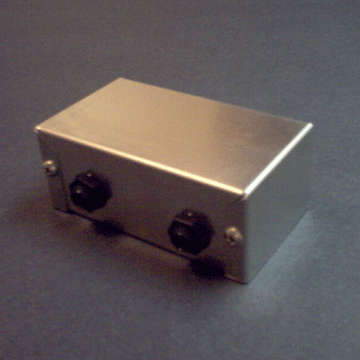

there was another one of these sold - but it was unpainted.
