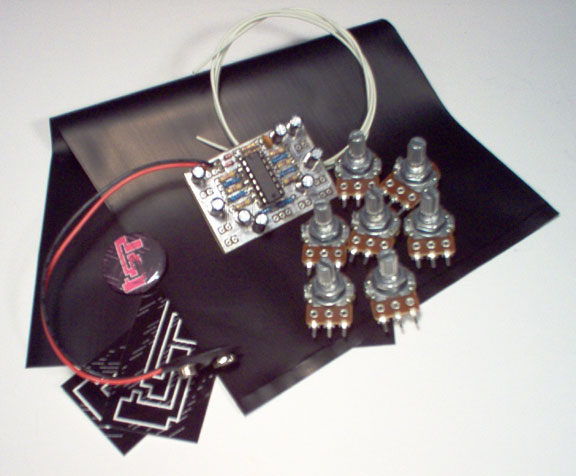

the PARADE

6 voice squarewave oscillator

click image to view larger

  price:  $44   ::: SOLD OUT

 ::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

my name sake is a bank of six squarewave oscillators with variable pitch for each covering three different ranges. there is also a wide range starve control and an output volume control. each of the 6 osc’s have a slightly different range from super slow clicky pulses to higher then humans can hear. the starve has a wide range of effects, one of the main ones is shaping the pulses to give very smooth pops and blips. this can also be used as a source for random logic and as a voltage control source



::: INSTRUCTIONS :::
:::  WIRING TUTORIALS :::
:::  ANSWERS :::

 ::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

 SIX PITCH / RATE CONTROLS, OUTPUT VOLUME, STARVE and POWER

 ::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

 ::: SAMPLE :::
 ::: SAMPLE :::
 ::: SAMPLE :::
 ::: SAMPLE :::
 ::: SAMPLE :::
 ::: SAMPLE :::

average size is about 6mg - these samples are just me hitting record and messing around in an attempt the show you the full range of options. they are all from one single pass that i just cut up into segments. no effects or editing was done to anything at all. people that make samples with reverb or delay are fucking morons that are trying to hide or exaggerate their results.



 ::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

hand assembled

fully tested before shipping
wide power supply range from 3 volts DC to 15 volts DC
current required - less then 3ma
professionally manufactured PCB, but cut by hand
length and width dimensions—1-7/8” x 1-3/8” or 48mm x 33mm
height dimensions - without pots 7/16" or 15mm / with pots 15/16" or 24mm
shipped safely in a static bag

1 year parts and labor warranty * conditional - bending the actual device voids it





please feel free to contact me if you have any questions or visit the forum here
