bleak mixser

passive analog summing mixer

click image to view larger

SOLD OUT

from the seeress series - complete

.\\\\' DESCRIPTION '///////////////////////////////.

this is a compact four channel passive analog mono mixer with mutes and volume controls for each channel along with a master volume control. it can be used to process either audio or control voltages and it can be used backwards as a splitter. this passive design does not impart any "color" or filtering of any kind and yes you can use this as an analog summing buss with your computer or other setup. being passive means that it does not require a power source but because of that it may require a slight amplification after the main output to bring it back to up the desired level. measuring it during line level audio use showed a nearly 20db drop in volume.

all pcbs have been hand printed by alex of getlofi – designed, cut and drilled by me

.\\\\\\' COLORS '//////////////////////////////.

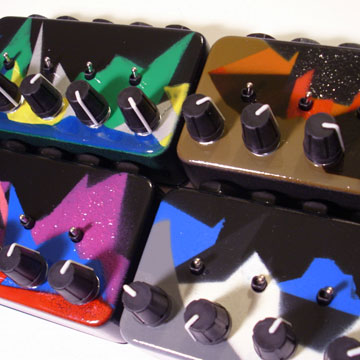

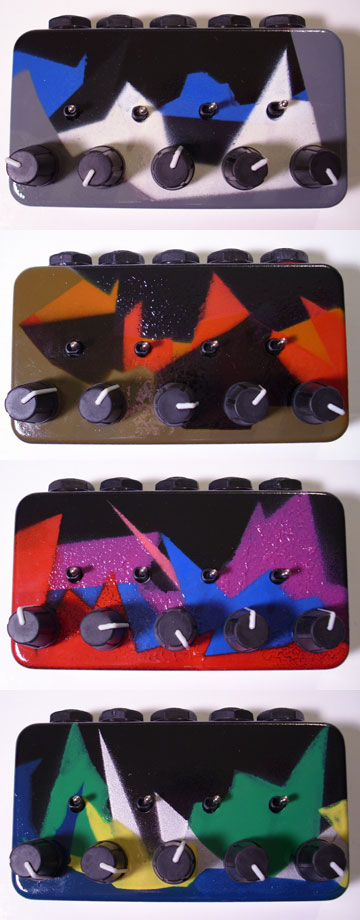

gray/ white/ black/ blue

gray/ black/ red/ orange ( black base coat crackled )

red/ blue/ pink/ purple ( purple crackled )

blue/ yellow/ white/ green ( blue and yellow edges bled a little )

.\\\\' CONTROLS '///////////////////////////////.

channel attenuators: reading from left to right are the 4 input volume controls

mutes: diagonal up and to the right is each channel's mute switch

main attenuator: far right knob is the main output volume

i/o jacks: each jack is in line with it's knob

.\\\\' DETAILS '///////////////////////////////.

each one is handmade - and numbered internally
extensively tested before shipping
aluminum enclosure - dimensions - 4.3 in. x 2.3 in.
case is powder coated
graphics \| imperfect spray painted stencils \| poly coated \| baked for scratch resistance
four ¼” input jacks ( mono ) - one ¼” output jack ( mono )
lifetime warranty - covering both parts and labor \| not finish

please feel free to contact me if you have any questions or visit the forum here
